Kit indicateur DM-100 OBDII/CAN SM-AFR Combo "PLX Devices" (digital, 52mm)

Kit indicateur DM-100 OBDII/CAN SM-AFR Combo "PLX Devices" (digital, 52mm).

Ce kit vous permettra de lire instantanément le ratio de la valeur du mélange,

richesse air/essence.

Overview

The PLX Wideband AFR (UEGO) multi gauge combo combines an accurate, fast

response wideband AFR (Air Fuel Ratio) controller with the world's most advanced

2 1/16" gauge (52mm). The DM-100 OBD Multi Gauge is a powerful scan tool,

code reader, and performance gauge all in one. It is compatible with 1996 and

later vehicles and connection is made through the onboard diagnostic port

(OBDII / CAN). The PLX Air Fuel Ratio Sensor Module accurately measures the

wideband air fuel ratio (AFR) of any internal combustion engine. It includes a

Bosch LSU4.2 wideband oxygen sensor. The wideband controller (SM-AFR) works

with gasoline, bio diesel, ethanol, methanol, E85, LPG, and CNG. It includes two

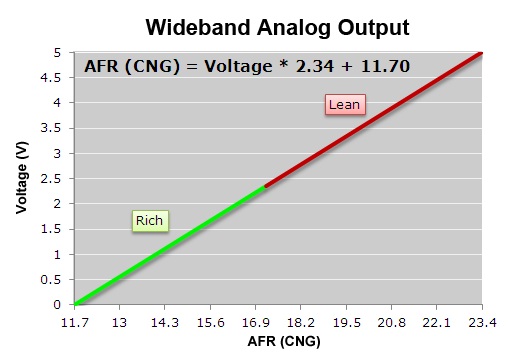

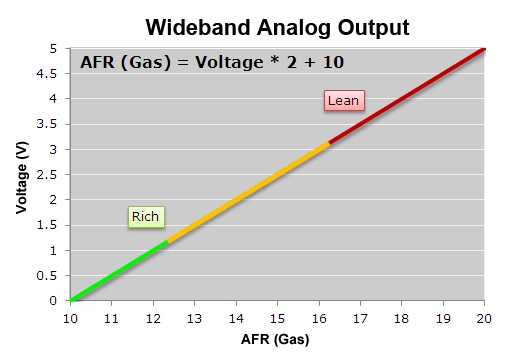

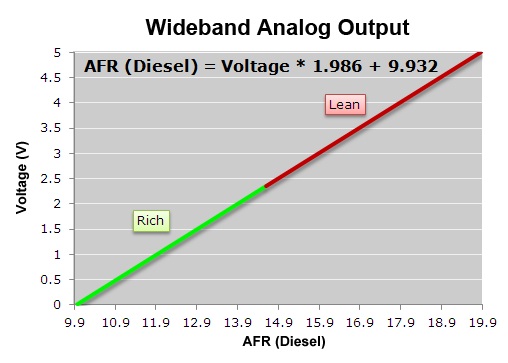

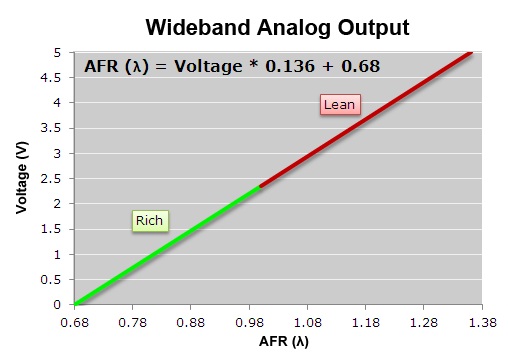

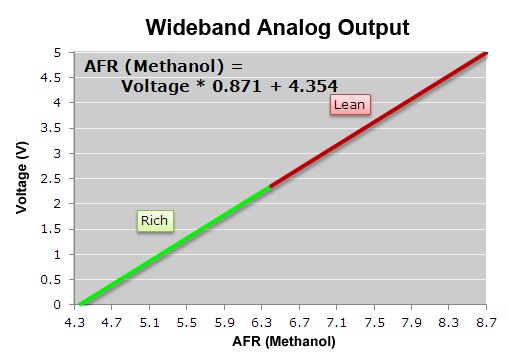

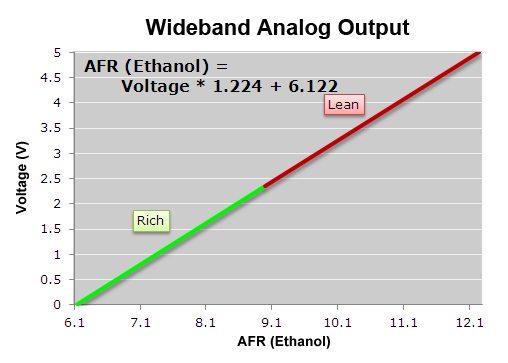

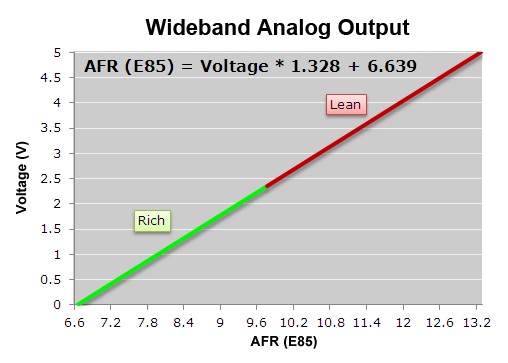

analog outputs (wideband 0-5V, and narrowband 0-1V) for interfacing with 3rd

party devices and one digital serial output for interfacing with the DM-6 gauge and

other Multi Gauges. The wideband analog output is ideal for interfacing with

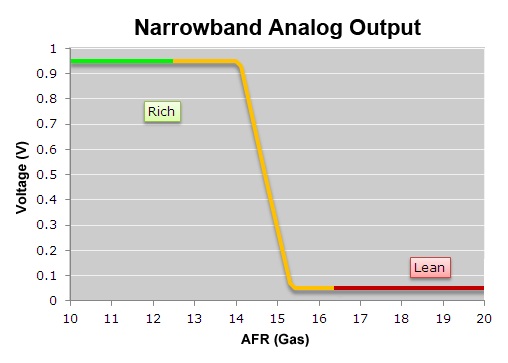

aftermarket ECU's and data loggers. The narrowband output is ideal for stock

narrowband oxygen sensor replacement where the simulated narrowband analog

output is fed back into your ECU to make it operate as if the stock narrowband

oxygen sensor is still installed while running the PLX wideband setup. All three

outputs can be used simultaneously. Additional features include advanced soft

start technology which prolongs the oxygen sensor's life and an aluminum

enclosure for durability and reliability

Technical Specifications (DM-100 OBDII)

Technical Specifications (SM-AFR)

Included Items

- SM-AFR main unit.

- Bosch LSU 4.2 wideband sensor.

- O2 sensor harness 10ft (3.04m).

- Power wire with 2.10mm connector 4ft (1.20m).

- Analog wires and connector with 4 terminals 4ft (1.20m).

- Serial Cable 1ft (30.47cm).

- Termination jumper.

- User Manual.

- Multi-Gauge OBD II Module.

- DM-100 2 1/16" (52.00mm) Universal OLED Display.

- 4 button remote 6ft (1.82m).

- Power wire with 2.10mm connector 4ft (1.20m).

- Serial Cable 1ft (30.47cm).

- USB Cable 6ft (1.82m).

- CD includes User Guide, Multi-Gauge Utility, USB Device Driver.

- Comprehensive User Guide.

- O2 Bung and Cap Sold Separately.
