Kit sensor module SM-FLUID-PRES "PLX Devices" (avec sensor, 0-150PSI/0-10Bar)

Kit sensor module SM-FLUID-PRES "PLX Devices" (avec sensor 0-150PSI/0-10Bar).

Ce kit en adéquation avec les indicateurs MultiGauges™ DM-6/DM-100 OBDII/

DM-100 OBDII Touch/DM-200 OBDII, vous permettra de lire instantanément

la pression d'huile.

Overview

The PLX Oil Pressure Sensor Module accurately measures the the pressure of oil.

This is ideal for oil pressure monitoring. Up to 32 Sensor Modules can be daisy

chained together in the iMFD system and can be connected to any PLX Multi

Gauge through the digital serial output port. The Oil Pressure Sensor Module can

also be used as a stand alone unit capable of interfacing with 3rd party hardware

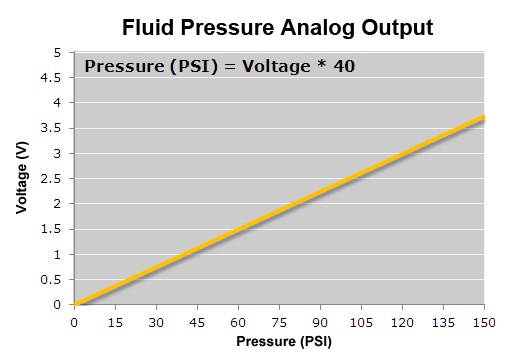

where both the digital output and the analog output are available simultaneously.

The included sensor is designed for oil pressure sensing ONLY. DO NOT use this

sensor with fuel, as the sensor will damage due to corrosion over time. The SM-FP

has a measurement range of 0 - 150 PSI or 0 - 10.5 kg/cm2.

Technical Specifications

Included Items

- SM-FP main unit.

- Power wire with 2.10mm connector 4ft (1.20m).

- Analog wires and connector with 4 terminals 4ft (1.20m).

- Serial Cable 1ft (30.47cm).

- Termination jumper.

- One Resistive Type Fluid Temperature Sender (Additional sensor sold separately).

- User Manual.
